Side Lofted Barn
The Side Lofted Barn design offers ample storage with generous overhead lofts at both ends. Whether you require a compact 8x10 shed for seasonal decorations or a large 16x60 portable building to accommodate various tools and equipment, we can provide a custom-built portable structure delivered right to your backyard. A Metal Side Lofted Barn option is also available.
Standard Features
- Lofted Gambrel Roof
- 70" Double Wooden Doors
- 2x4 Door and Window Headers
- 2 - 2x3 Windows
- Double Top Plate
- Lofts at Opposite Ends
- 29-Gauge Metal Roof
- Double Studded Corners
- 79" Wall Height
- Double Studded Every 4'

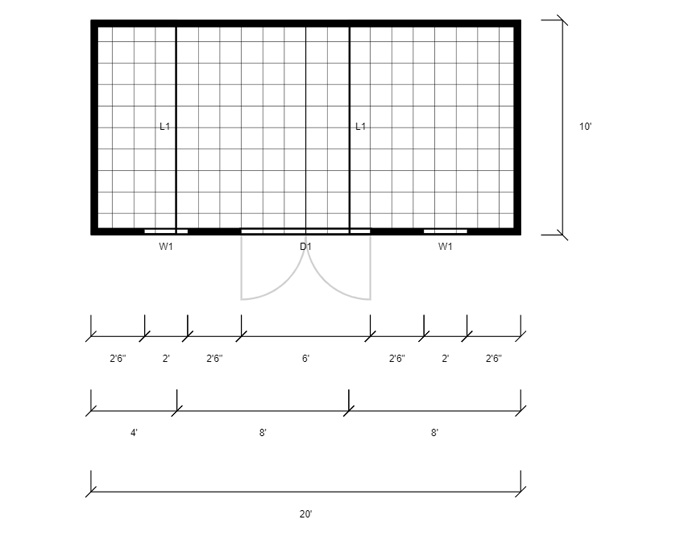

Standard Floor Plan
Side Utility Sizes
- 8' Wide: 8x10, 8x12, 8x16, 8x20
- 10' Wide: 10x10, 10x12, 10x16, 10x20, 10x24
- 12' Wide: 12x12, 12x16, 12x20, 12x24, 12x28, 12x32, 12x36, 12x40, 12x44, 12x48, 12x52
- 14' Wide: 14x16, 14x20, 14x24, 14x28, 14x32, 14x36, 14x40, 14x44, 14x48, 14x52, 14x56, 14x60
- 16' Wide: 16x20, 16x24, 16x28, 16x32, 16x36, 16x40, 16x44, 16x48, 16x52, 16x56, 16x60
*Due to hauling restrictions, 12’ and 16’ wide buildings are measured from eave to eave.
Wall to wall will measure 11’2” on 12’ buildings and 15’2” on 16’ buildings.
Does not apply to buildings delivered in Texas.
Siding & Trim Colors
Roof Colors
*Some options are subject to upgrade fees.
Due to screen resolution, colors representations are approximate and may vary from actual building.
